Features

Specifications

Name: Medical Portable Touchscreen Siriusmed Ventilator

Keyword: Siriusmed Ventilator

Power Source: Electric

Material: Metal, Plastic

Warranty:: 1 Year

Instrument Classification: Class III

Widely Usage Range: Suitable For Infants And Adults

Tidal Volume Setting: 20~2500mL

Sufficient Modes Of Ventilation:: VCV, PCV, SIMV-VC, SIMV-PC, SPONT/CPAP+PSV, DuoPhasic

Friendly User Interface:: TFT Color Screen With Touch Screen

High Light:

Touch Screen Ventilator Portable Medical

Electric Ventilator Portable Medical Class III

Basic Infomation

Brand Name: R

Payment & Shipping Terms

Gallery

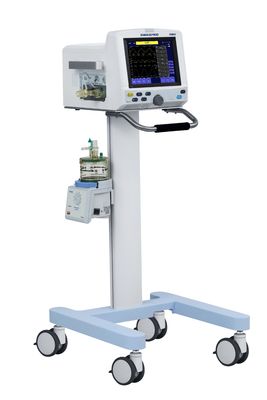

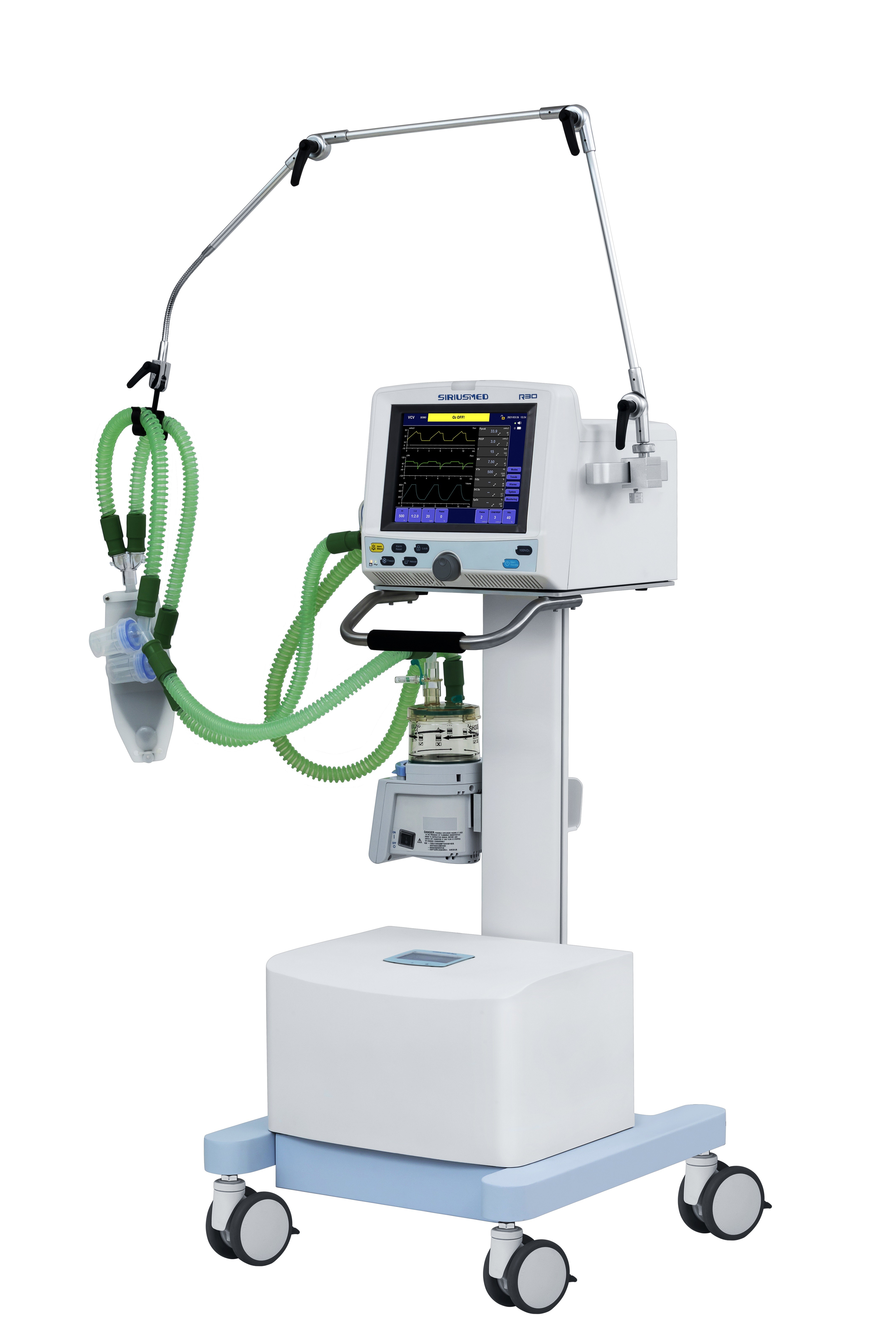

Electric Class III Ventilator Portable Medical with touch screen

Product Description

Medical Portable Touchscreen Siriusmed Ventilator-R30P

Multiple Options for All Users

High-end model R30 has more advance modes of ventilation, with the high-end functions such as PRVC, NIV, VS. Duo-Phasic that can be easily updated via software.

With the optional modules of renowned brands, such as Masimo EtCO2, SP02, nebulizers and others etc, can be used to monitor more information for doctors/users reference.

Optional Features

R30 Design enables for the accurate measurement of High Flow Oxygen Therapy, EtCO2 & FiCO2 values. The performance of the End tidal CO2 rebreathing technique can be improved through means of sampling arterial blood gas and an algorithm that takes into account the effects of non-equilibration of ETCO2 during rebreathing.

Technical Specification

Pneumatic Ventilator	R30
l Display l Respiratory mode l Graphical display l Battery l Data communication port	l 10.4”, TFT display, with touch screen l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV ) l P-T, F-T, V-T(Optional: CO2-time, pulserate-time) l loop: P-V, F-V l NI-MH battery, >120mins l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI) l Power supply: 100-240V, 50/60Hz l Temperature: 10-40℃ (Operation), -20-60℃ (Storage) l Relative humidity: 5-95%, non-condensing (Operation) ≤95%, non-condensing (Storage) l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa l Dimensions (H×W×D): Ventilator: 455mm x 400mm x 300mm Trolley: 565mm X 535mmX 910mm l Weight: Ventilator: 12.5 kg Trolley: 20 kg

Pneumatic Ventilator	R30
l Display l Respiratory mode l Graphical display l Battery l Data communication port	l 10.4”, TFT display, with touch screen l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV ) l P-T, F-T, V-T(Optional: CO2-time, pulserate-time) l loop: P-V, F-V l NI-MH battery, >120mins l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI) l Power supply: 100-240V, 50/60Hz l Temperature: 10-40℃ (Operation), -20-60℃ (Storage) l Relative humidity: 5-95%, non-condensing (Operation) ≤95%, non-condensing (Storage) l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa l Dimensions (H×W×D): Ventilator: 455mm x 400mm x 300mm Trolley: 565mm X 535mmX 910mm l Weight: Ventilator: 12.5 kg Trolley: 20 kg
Standards
IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, IEC 60601-2-12
Alarm	Upper limit	Lower limit
Tidal volume Minute volume Oxygen concentration Airway pressure Respiratory frequency SPO2 ETCO2 Pulse rate	20~3000 mL 1~99 L 22~100%, OFF 1~99 cmH2O 1~120 bpm 50~99%, OFF 0.1~13.3 kPa 31~250 bpm	OFF,20~2999 mL 0~98 L 20~100% 0~98 cmH2O 0~99 bpm 49~99% 0~13.2 kPa 30~249 bpm

Circuit occlusion Apnea alarm O2 SUPPLY DOWN alarm Mains failure alarm Battery power low alarm Battery discharged alarm Alarm silence	(PEEP+15) cmH2O, 15s 15~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s
Auxiliary O2	Auxiliary O2 Flow meter(O2: 0～15LPM) (Optional)
ACGO	Yes
O2 Flush	25-75L/Min
Battery	NI-MH battery build in. >90mins
Yoke	2 (O2, N2O) (Optional)
Gas Cylinder	O2, N2O (Optional)
Cycle Absorber	Intergrade, bypass Design, heating system.
Setting	Parameter	Monitoring	Parameter
Tidal volume (optional 20ml) Respiratory frequency Inspiratory time Breath-hold time Pressure triggering Flowrate triggering PEEP Pressure support Pressure control High pressure level Low pressure level Oxygen concentration 100% O2 Thigh (optional) freeze	20~2500mL 1~120 bpm 0.1~12 s 0~50% -20cmH2O~PEEP 0 0.5~20 L/min 0~50 cmH2O 0~80 cmH2O 5~80 cmH2O 5~80 cmH2O 0~50 cmH2O 21~100% 2min 0.1~30s Yes	Inspiratory tidal volume Expiratory tidal volume Minute volume Spontaneous minute volume Spontaneous respiration frequency PEEP Airway peak pressure Mean airway pressure Inspiratory platform pressure Minimum airway pressure Inhaled oxygen concentration Airway resistance RSBI SPO2 (Optional) Pulse Rate (Optional) EtCO2 (Optional)	0~4000 mL 0~4000 mL 0~99 L 0~99 L 0~120 bpm 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O -20~100 cmH2O 15% ~100 % 0~600 cmH2O/(L/S) 0 ~ 9999 bpm/L 70 ~ 100 % 30~250 bpm 0 ~ 100 mmHg
