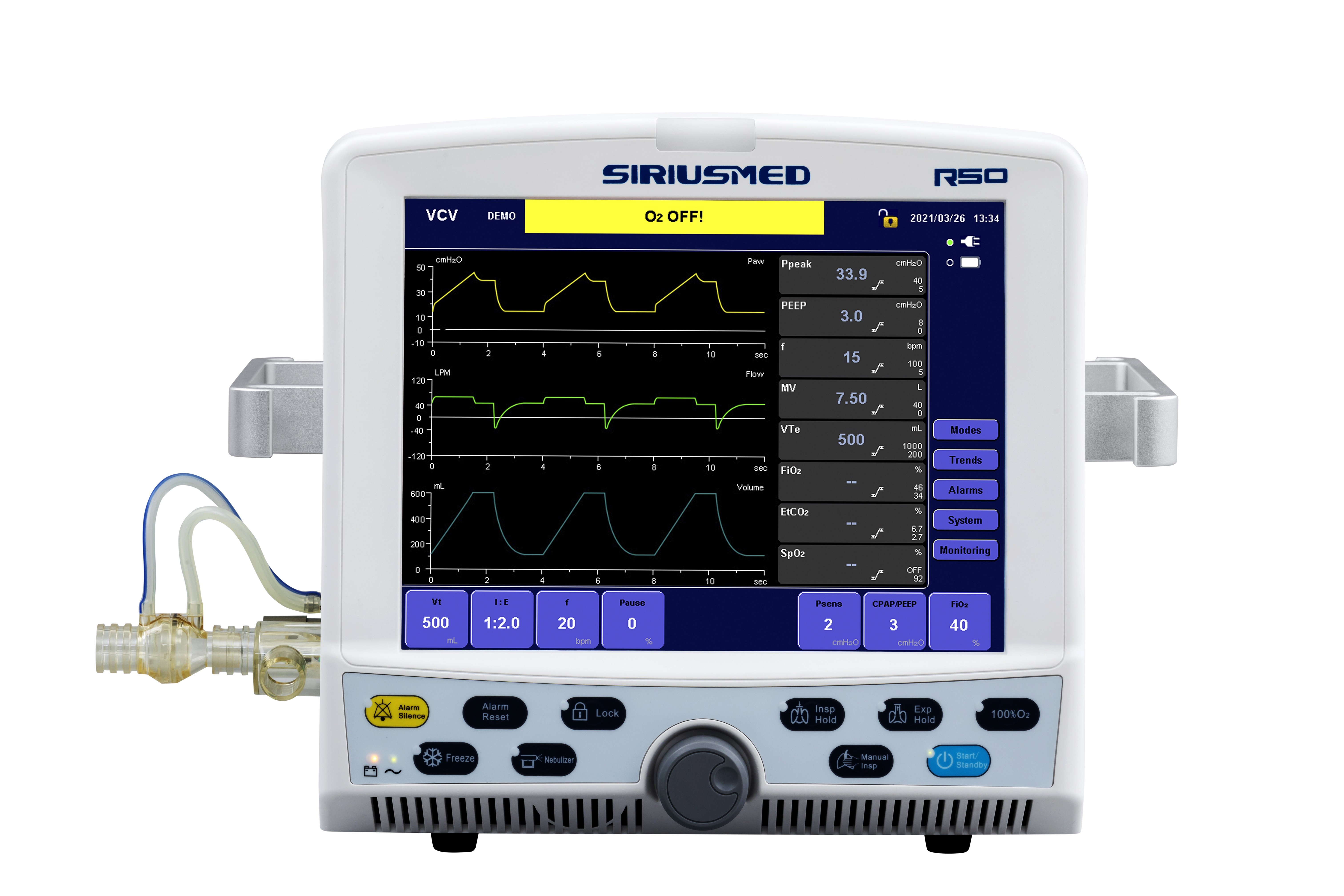

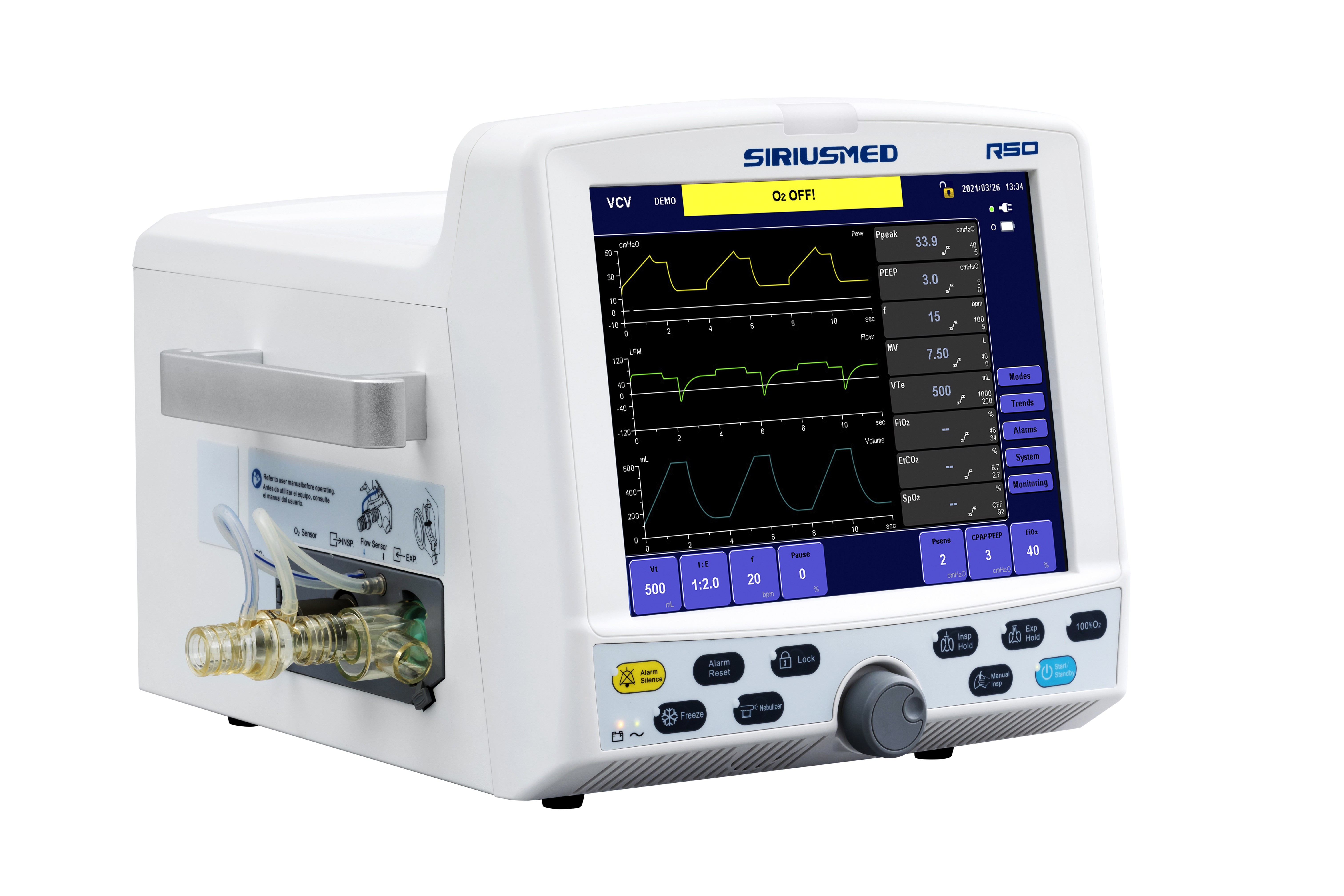

Ventilator R50 -3 Waveforms And 2 Loops On One Interface, Quick Changeover Able
10.4”TFT touch screen, with a rotary knob.
Keyboard lock
System Specifications
| Pneumatic Ventilator | |||||
|
|||||
| Operating Conditions | |||||
5-95% (Storage)
Ventilator: 455mm x 400mm x 300mm Trolley: 565mm X 535mmX 910mm
Ventilator: 12.5 kg Trolley: 20 kg |
|||||
| Standards | |||||
| IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, ISO 80601-2-12 | |||||
| Alarm | Upper limit | Lower limit | |||
|
Tidal volume Minute volume Oxygen concentration Airway pressure Respiratory frequency ETCO2 Pulse rate Circuit occlusion Apnea alarm O2 SUPPLY DOWN alarm Mains failure alarm Battery power low alarm Battery discharged alarm Alarm silence |
20~3000 mL 1~99 L 22~100%, OFF 1~99 cmH2O 1~120 bpm 0.1~13.3 kPa 31~250 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
OFF,20~2999 mL 0~98 L 20~100% 0~98 cmH2O OFF,1~99 bpm 0~13.2 kPa 30~249 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
|||
| Setting | Parameter | Monitoring | Parameter | ||
|
Tidal volume Respiratory frequency Inspiratory time Breath-hold time Pressure triggering Flowrate triggering PEEP Pressure support Pressure control High pressure level Low pressure level Oxygen concentration 100% O2 Thigh Tlow freeze Expiratory hold (optional) Inspiratory hold (optional) Manual inspiration (optional) |
20~2500mL 1~120 bpm 0.1~12 s 0~50% 0.5~20 L/min 0~50 cmH2O 0~80 cmH2O 5~80 cmH2O 5~80 cmH2O 0~50 cmH2O 21~100% 2min 0.1~30s 0.2~30s Yes Yes Yes Yes |
Inspiratory tidal volume Expiratory tidal volume Minute volume Spontaneous minute volume Spontaneous respiration frequency
PEEP Airway peak pressure Mean airway pressure Inspiratory platform pressure Minimum airway pressure Inhaled oxygen concentration Airway resistance
Compliance RSBI PEEPi EtCO2 (Optional) |
0~4000 mL 0~4000 mL 0~99 L 0~99 L/min 0~120 bpm 0~120 bpm 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O -20~100 cmH2O 15% ~100 % 0~600 cmH2O/(L/S) 0~300 mL/cmH2O 0 ~ 9999 bpm/L 0~100cmH2O 0 ~ 100 mmHg |
||
Pneumatically driven and electronically controlled ICU ventilator
Usage range: Suitable for Adults, Pediatrics and Infants
Sufficient modes of Ventilation: VCV, PCV, SIMV-VC+PSV, SIMV-PC+PSV, SPONT/CPAP+PSV, BACKUP, Manual
Optional:PRVC,SIMV-PRVC, NIV-PC,NIV-CPAP, DuoPhasic+PSV ,APRV+PSV
Knob and Hard key input,Easy and fast selectable functions which enables single step functionality.

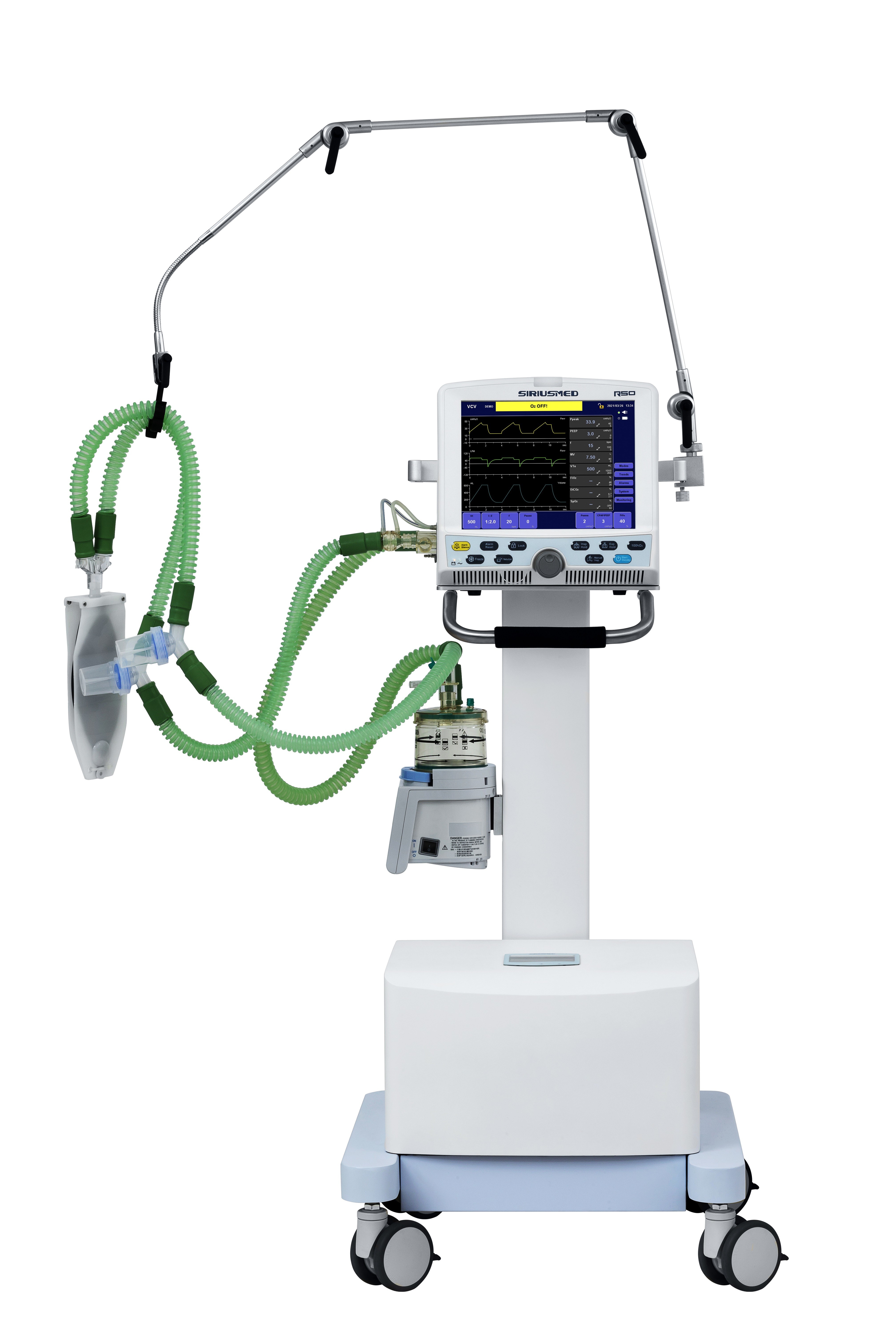

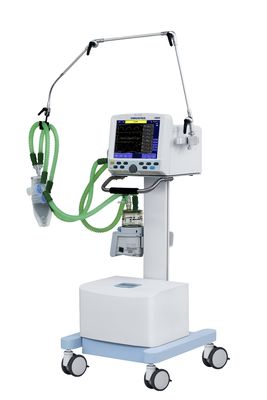

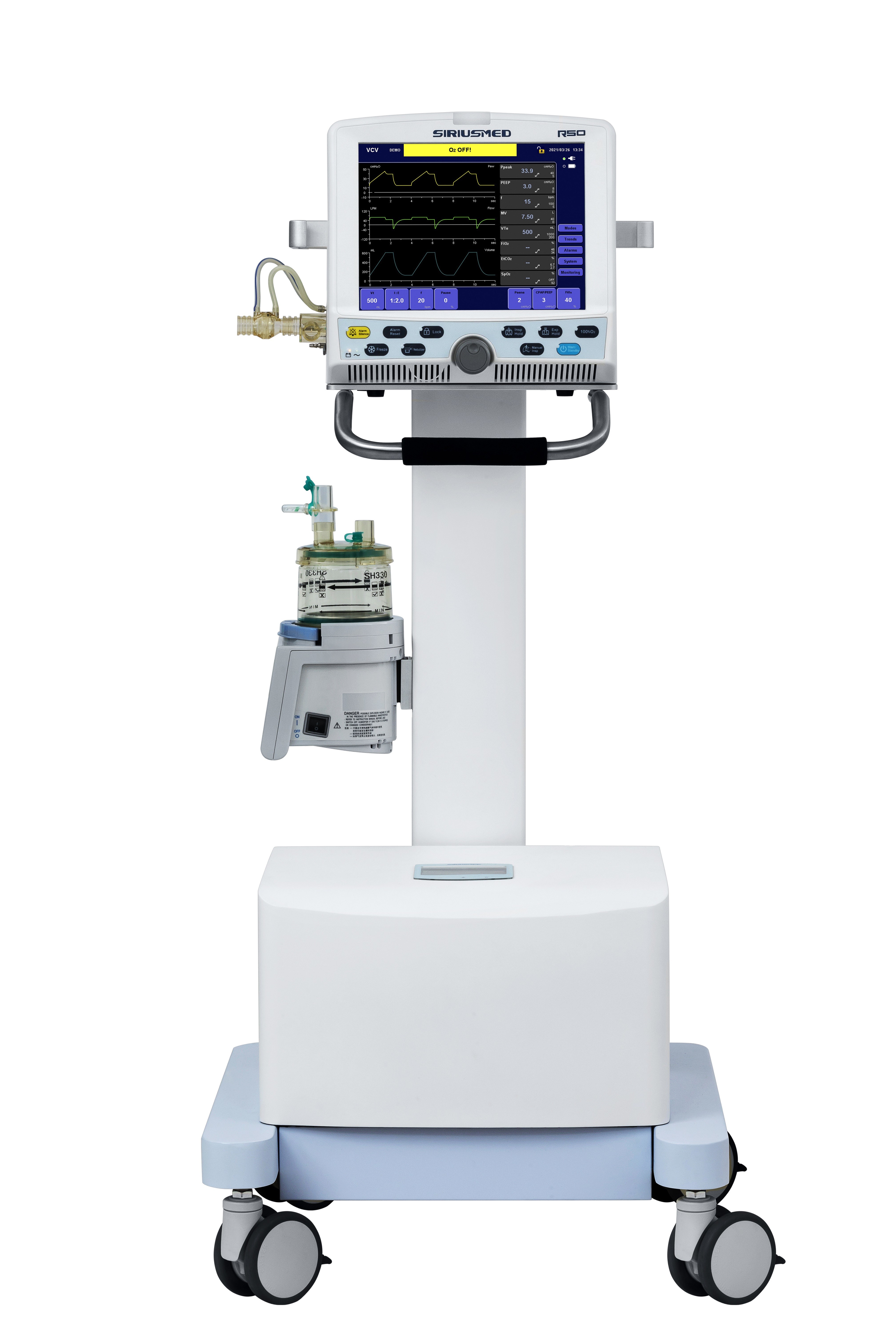

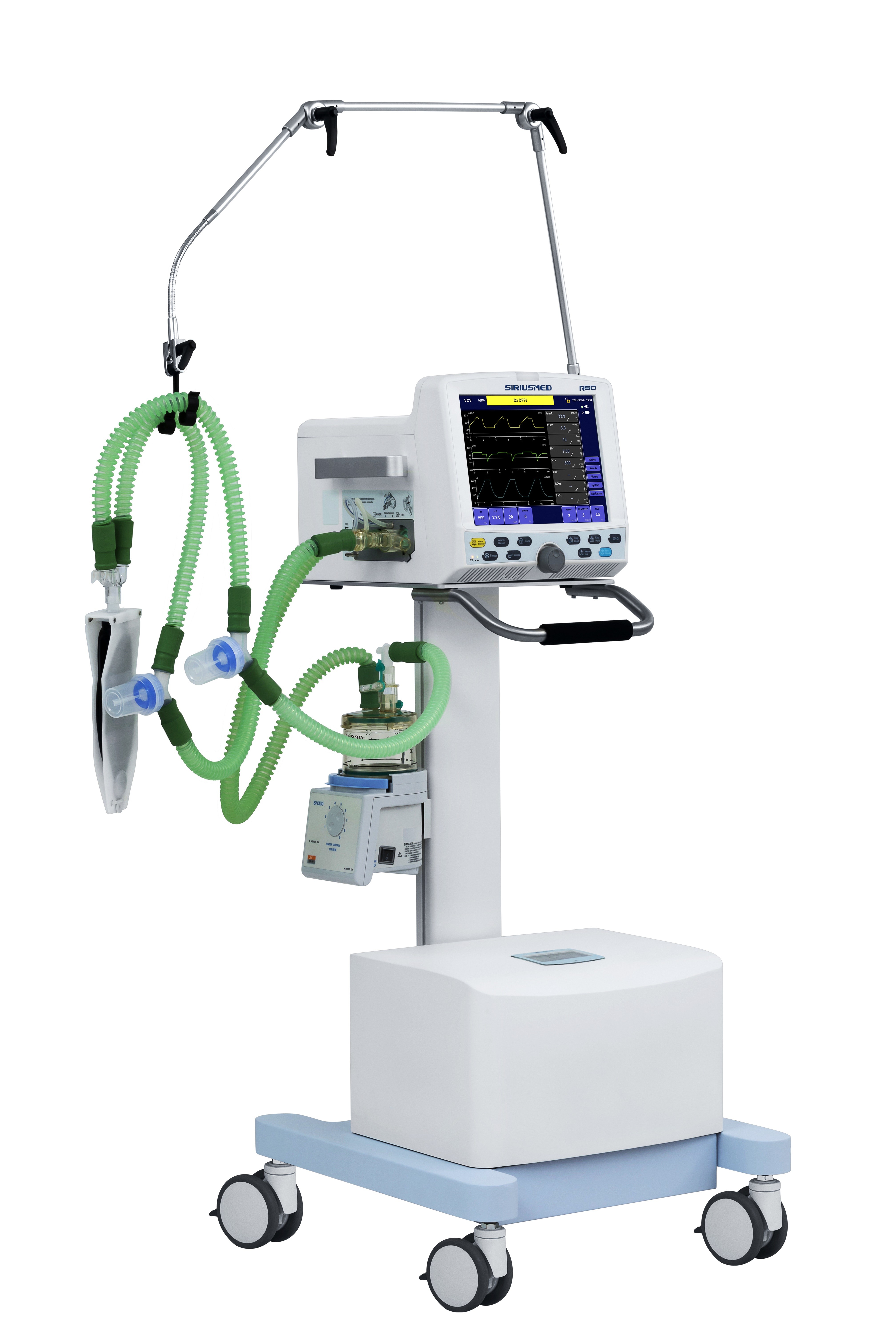

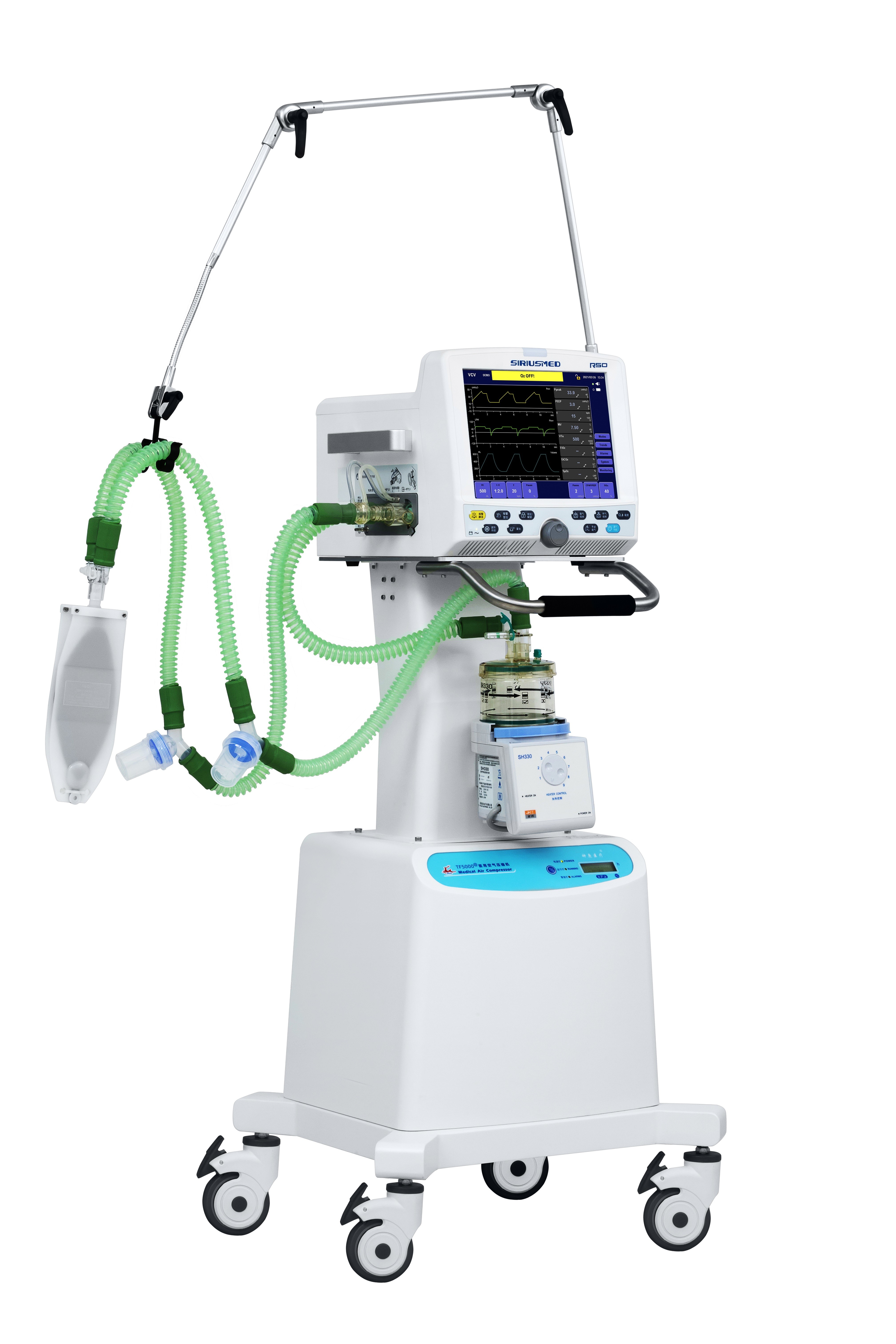

Easy to position ergonomic trolley with two brakes
Quick self-test no need frequent interaction from operator
Direct setting of ventilation parameters in the main interface
3 waveforms and 2 loops on one interface, quick changeover able
System log keeps record of all types of alarms
High Flow Oxygen Therapy
Facilitates the removal & discharge of patient secretions & Protects the physiological functions of respiratory tract with increased patient comfort,Reduces the chance for dead cavity of mouth & nasopharynx, promotes oxygen exchange & humidification, improve patients breathing efficiency and reduces efforts of over respirations exhaustion.
