COVID Ventilator R50-Quick Self-Test No Need Frequent Interaction From Operator
System Specifications
| Pneumatic Ventilator | |||||
|
|||||
| Operating Conditions | |||||
5-95% (Storage)

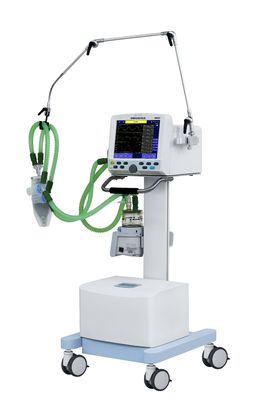

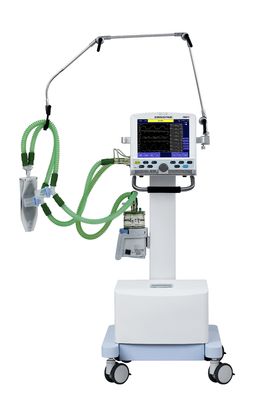

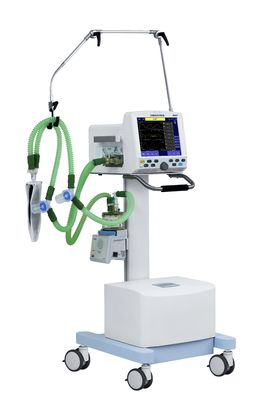

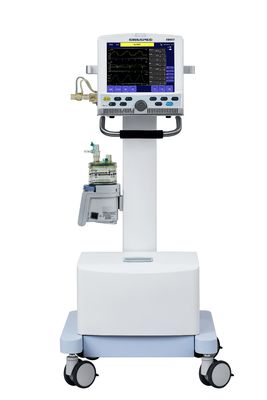

Ventilator: 455mm x 400mm x 300mm Trolley: 565mm X 535mmX 910mm
Ventilator: 12.5 kg Trolley: 20 kg |
|||||
| Standards | |||||
| IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, ISO 80601-2-12 | |||||
| Alarm | Upper limit | Lower limit | |||
|
Tidal volume Minute volume Oxygen concentration Airway pressure Respiratory frequency ETCO2 Pulse rate Circuit occlusion Apnea alarm O2 SUPPLY DOWN alarm Mains failure alarm Battery power low alarm Battery discharged alarm Alarm silence |
20~3000 mL 1~99 L 22~100%, OFF 1~99 cmH2O 1~120 bpm 0.1~13.3 kPa 31~250 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
OFF,20~2999 mL 0~98 L 20~100% 0~98 cmH2O OFF,1~99 bpm 0~13.2 kPa 30~249 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
|||
| Setting | Parameter | Monitoring | Parameter | ||
|
Tidal volume Respiratory frequency Inspiratory time Breath-hold time Pressure triggering Flowrate triggering PEEP Pressure support Pressure control High pressure level Low pressure level Oxygen concentration 100% O2 Thigh Tlow freeze Expiratory hold (optional) Inspiratory hold (optional) Manual inspiration (optional) |
20~2500mL 1~120 bpm 0.1~12 s 0~50% 0.5~20 L/min 0~50 cmH2O 0~80 cmH2O 5~80 cmH2O 5~80 cmH2O 0~50 cmH2O 21~100% 2min 0.1~30s 0.2~30s Yes Yes Yes Yes |
Inspiratory tidal volume Expiratory tidal volume Minute volume Spontaneous minute volume Spontaneous respiration frequency
PEEP Airway peak pressure Mean airway pressure Inspiratory platform pressure Minimum airway pressure Inhaled oxygen concentration Airway resistance
Compliance RSBI PEEPi EtCO2 (Optional) |
0~4000 mL 0~4000 mL 0~99 L 0~99 L/min 0~120 bpm 0~120 bpm 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O -20~100 cmH2O 15% ~100 % 0~600 cmH2O/(L/S) 0~300 mL/cmH2O 0 ~ 9999 bpm/L 0~100cmH2O 0 ~ 100 mmHg |
||
Advanced Functions
Inspiration hold, after the breath, the special function display area will show the value of system static compliance (Cst) measurements.
Expiration hold, After using the key special function will display the measured intrinsic PEEP on the device display interface area.
High Quality spare parts
The spare parts of the world’s leading brand ensure faster and more accurate O2 & air delivery in proportion and reduce WOB, to ensure high accuracy and stable performance.
Friendly interface

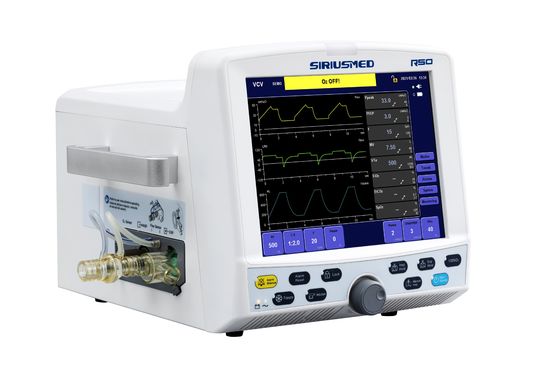

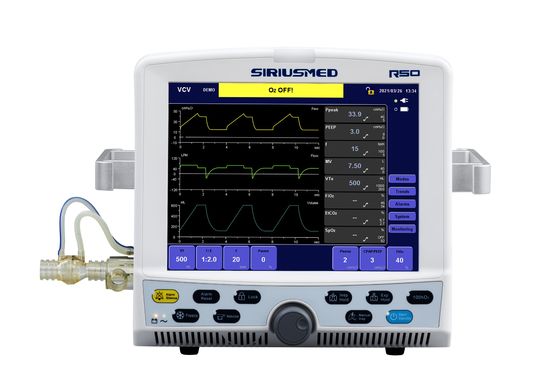

12.1" TFT touch screen, with rotary knob.
High resolution display suit for long-term application in ICU.
