Medical equipment accessories of ventilators, Air Tube with French Standard for connecting an oxygen cylinder

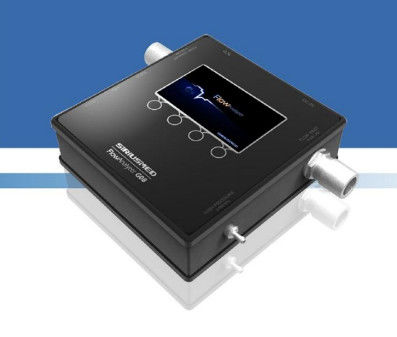

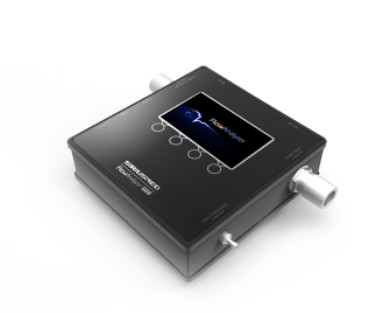

The Flow Analyzer G08 is a device that monitors unidirectional gas flow and pressure. The essential function of the device is to monitor the flow, airway pressure and high pressure. The device can also measure the gas temperature within the flow channel, improving the flow accuracy.
French standard connector
White for Oxygen
Blue for N2O
Black for Air
Use for connecting an oxygen cylinder or Hospital central gas source
High resistance to bursting, traction and crushing
Rapid identification of gas by tube color and the marking
Factory crimped standard non-removable connector making it impossible to reverse hoses
Guaranteed without latex and odorless
Designed to last
Highly resistant hose
Crimped connectors
Operating Environmental Conditions
| Temperature Range | 10 to 30° | |
| Humidity | 10 to 95 % | |
| Barometric Pressure | 50 | |
| Storage Environmental Conditions | ||
| Temperature Range | 5 to 40℃ | |
| Humidity | 10 to 95% | |
| Parameter | Range | Resolution |
| Flow | 0-300 lpm | 0.1 lpm |
| Airway Pressure(PAW) | -50~130 cmH2O | 0.1 cmH2O |
| High Pressure (HP) | 0~690 kPa | 0.1 kPa |
| Barometric pressure(BARO) | 15~115 kPa | 0.1 kPa |
| Gas Temperature(Temp) | -20~60 ℃ | 0.1 ℃ |
| Airway resistance(R) | 0~1000 cmH2O/L/s | 0.1 cmH2O/L/s |
| Oxygen concentration(O2%)(Option) | 0~100 % | 0.10% |
| MAC(Option) | 0~10 | 0.01 |
| FiCO2(Option) | 0~13.3 kpa | 0.1 kPa |
| 0~13.3 % | 0.10% | |
| 1~100 mmHg | 1 mmHg | |
| FiN2O(Option) | 0~8 % | 0.10% |
| ETN2O(Option) | 0~8 % | 0.10% |
| FiHAL(Option) | 0~8 % | 0.10% |
| ETHAL(Option) | 0~8 % | 0.10% |
| FiENF(Option) | 0~8 % | 0.10% |
| ETENF(Option) | 0~8 % | 0.10% |
| FiISO(Option) | 0~8 % | 0.10% |
| ETISO(Option) | 0~8 % | 0.10% |
| FiSEV(Option) | 0~10 % | 0.10% |
| ETSEV(Option) | 0~10 % | 0.10% |
| FiDES(Option) | 0~22 % | 0.10% |
| ETDES(Option) | 0~22 % | 0.10% |
