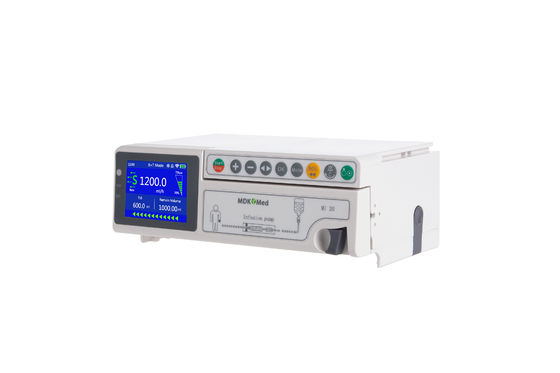

Flexible Stackable Automatic Infusion Pump Powered Free Flow Clamp
1 unit
MOQ
345-360USD per unit
Price
Flexible Stackable Automatic Infusion Pump Powered Free Flow Clamp
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Siriusmed
Certification: CE, ISO 13485
Model Number: MI20
High Light:

flexible automatic infusion pump

,

stackable automatic infusion pump

,

powered free automated iv pumps

Payment & Shipping Terms
Packaging Details: Carton Box
Delivery Time: 5-8 days Qty within 500 unit
Payment Terms: T/T
Supply Ability: 1000 Unit/Units per Month
Specifications
Name: Flexible Infusion Pump Stackable Automatic Powered Free Flow Clamp
Infusion Volume: 0.01-9999.99ml, Step By 0.01ml
Flow Rate: 0.01-1800ml/h, Step By 0.01ml/h
Purge/Bolus Rate: 1-1800ml/h Adjustable, ±20%
Accuracy: ±5%
Alarm: Infus Ion Near To End Alarm, Low Battery; Battery Exhausted, Air In Line, Door Open, A.C. And D.C. Off, Pause Overtime
Power: A.C. Input Power 100V-240V 50/60Hz; D.C. Output Power 15V/2A
Battery Type: Lithium; Nominal Voltage: 10.8V; 7 Hours Working Period
Weight: 1.5Kg
Dimension: 215*129*80mm (W*D*H)
Classification: Class II, Type CF, IPX4
Warrenty: 2 Years
Product Description

Made In China Infusion Pumps, MI20, Ce/Iso Approved



Adjustable, controllable and flexible infusion

Standard flow rate:0.1ml/h-1800ml/h

Accuracy:±5%

Multiple infusion modes

Stackable design, Space efficient

Multiple languages supported

Download set tng and upload therapy data via WIFI

One-click to install on the pump pole. No screw needed

Upstream/Downstream Occlusion Alarm

Mi20 can alarm on empty pump set or when freeflow clamp opens

Convenient management

Prevents free flow automatically, with high security and easy operation

Drug library available

Alarm notification

Automatically release pressure while pipe is blocked

Touch screen + Button easy control and set-up







SPECIFICATION

1. Volume infused: 0.01-9999.999ml, Step by0.01ml
2. Flow rate: 0.01-1800ml/h, Step by 0.01ml/h
3. Accuracy: ±5%
4. Purge/Bolus rate: 1-1800ml/h, Step by 1ml/h
5. KVO rates: Flow rate≥10ml/h:KVO rate 3ml/h
6. Flow rate<10ml/h:KVO rate 1ml/h
7. Flow rate<1ml/h:KVO rate=flow rate

8. Alarm: Battery error, Low battery, Air in line, Occlusion,
9. Door open, Pause overtime, VTBI completion,
10. Drop error, Malfunction, AC/DC off

11. Occlusion pressure: Two level: High, Low
12. H: 100Kpa±30Kpa; L: 40Kpa±20Kpa

13. Power Adapter: A.C. input power 100v-240v 50/60Hz
14. D.C. output power 15V/2A input power 15V

15. Lithium battery: Nominal Voltage: 10.8V, 7 hours working duration
16. Classfication: Class II, Type CF, IPX 4
17. Weight: 1.5KG
18. Dimension: 215*129*80mm(W*D*H)
