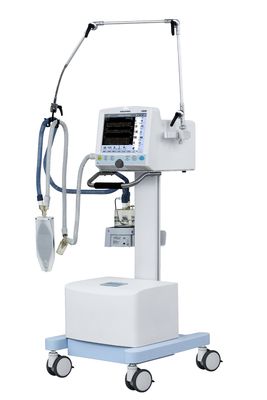

Medical Portable Icu Siriusmed Ventilator For Breathing

R30 medical portable ventilator with humidification, spo2, improve survival rate, exhalation valve

Good integration:

• Built-in active expiratory PEEP valve
• Built-in O2 & Air mixture device
• Built-in synchronized nebulizer
• Built-in battery (≥ 90 mins)
• Optional etCO2 , SPO2 monitoring module
• Lung mechanics parameters and loops
• Inspiratory hold with static compliance measurements
• Manual inspiration
• 100% O2 suction
• Nurse Call
• 72 hours Trend

10.4”TFT touch screen, with a rotary knob.

Keyboard lock

• Achieves breathing during both inspiratory and expiratory.
• Actively controls the target pressure, prevent airway pressure high
• Promotes patient ventilator synchrony.
• Modular exhalation valve & flow sensor is easily removable and serializable.

Features

• Pneumatically driven and electronically controlled ICU ventilator
• Usage range: Suitable for Adults,pediatrics and neonatal
• Sufficient modes of Ventilation: VCV, PCV, SIMV-VC+PSV, SIMV-PC+PSV, SPONT/CPAP+PSV, BACKUP, Manual
• Optional:PRVC,SIMV-PRVC, NIV-PC,NIV-CPAP, DuoPhasic+PSV ,APRV+PSV
• Knob and Hard key input,Easy and fast selectable functions which enables single step functionality.
• Easy to position ergonomic trolley with two brakes
• Quick self-test no need frequent interaction from operator
• Patient settings automatic stored and can be restored quickly
• Direct setting of ventilation parameters in the main interface
• 3 waveforms and 2 loops on one interface, quick changeover able
• System log keeps record of all types of alarms

• Gas supply: Air, O2, 280kPa -600kPa (41~87 PSI)
• Power supply: 100-240V, 50/60Hz
• Temperature: 10-40℃ (Operation), -20-60℃ (Storage)
• Relative humidity: 5%-95%, non-condensing (Operation)

5%-95% (Storage)

• Atmospheric pressure (Operation & Storage): 500hPa-1060hPa
• Dimensions (H×W×D):

Ventilator: 455mm x 400mm x 300mm

Trolley: 565mm X 535mmX 910mm

• Weight:

Ventilator: 12.5 kg

Trolley: 20 kg
