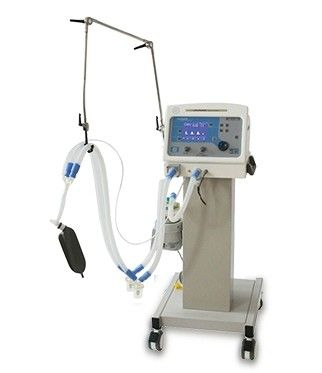

Made in China Emergency Ventilator- H-100C- Portable with trolly
Features:
Multiple functions, compact design, easy to take, design for transport and first aid. The main parts adopt good-quality components.
Special self-test function.
Large LCD screen, JogDial operation, simple and intuitive.
Three kinds of power sources: AC, DC and internal battery.
Specification:
| Model | H-100C | ||
| Modes | CMV, A/C, SIMV, CPAP | ||
| Tidal Volume | 50-2000ml | ||
| Respirtory rate | 1-100bpm | ||
| FiO2 | 40%-100% | ||
| Trigger | -20-19hPa | ||
| Peak pressure | 0-60hpa | ||
| Max Minute Volume | ≥22L/min | ||
| PEEP | 0.5-20hPa adjustable | ||
| PIP | 0-60hPa | ||
| Over Pressure Relief | ≤72hPa | ||
| Sigh | 0-10 per 100 breath | ||
| Package Dimension | 520*520*270mm | ||
| Weight | 12Kg(including all the accessories) | ||
| Monitored Parameter: |
Tidal Volume Oxygen concentration Sigh Respiratory Rate Trigger CPAP pressure Peak Airway Pressure Time Pressure Wave Form |
Alarms: |
High Airway Pressure Low Airway Pressure High respiratory rate alarm Low battery Low Oxygen Source |
