12.1" TFT touch screen Anesthesia Machine , Class III Anesthesia Work Station
12.1" TFT touch screen Anesthesia Machine , Class III Anesthesia Work Station
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: siriusmed
Certification: CE,ISO,FSC,
Model Number: x50
High Light:

Touch Screen Anesthesia Machine

,

12.1" Anesthesia Machine

,

Class III Anesthesia Work Station

Payment & Shipping Terms
Payment Terms: T/T
Specifications
Type: Anesthesia Equipments & Accessories,Anaesthesia Machine,Breathing Apparatus
Instrument Classification: Class III
Product Name: Hospital Vaporizer Anesthesia Machine,Adult Anaesthesia Machine,Anaesthetic Machine With Ventilator Machine Price,Portable Anaesthesia Machine
Application: Operating Room,Applied For Child And Adult,Adult And Pediatric( 3kg Over)
Warranty: 1 Year
Display: 12.1" TFT Touch Screen
Product Description

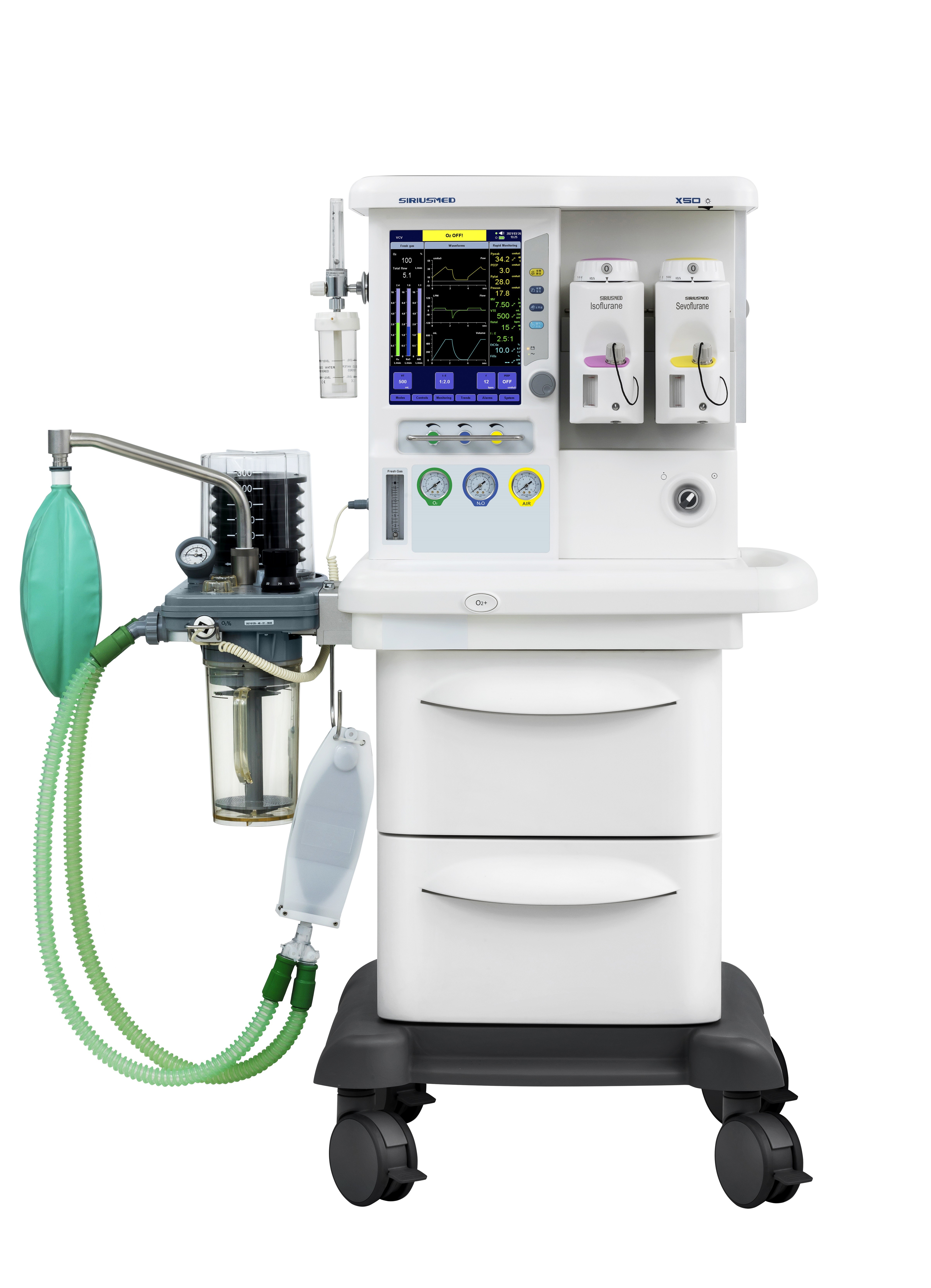

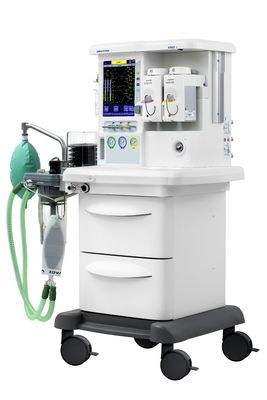

Anesthetic Workstation X50-12.1" TFT touch screen, with rotary knob. Resolution 800 X 600.



Suitable for pediatric and adults

Tidal volume setting Optional 20~1500ml(optional 10-1600ml)

Friendly user interface

Sufficient modes of Ventilation: VCV, PCV, SIMV-V, Manual

Gas supply: O2 , N2O, Air

Optional: SIMV-P , CPAP/PSV , PRVC, SIMV-PRVC, BACKUP , O2 , ETCO2 , AGSS , Suction,AA

6 Tubes flowmeter more accurate and stable, auxiliary flowmeter Gas system, Hypoxic guard system, ORC, O2, Flush

Vaporizer: Selectatec bar support 2 vaporizers

ACGO, 2 Yokes (O2 & N2O)

12.1" TFT touch screen, with rotary knob. Resolution 800 X 600.

System Specifications

System Specifications
Description Technical parameters
Machine
Size 1410 × 950 × 650 (H × W × D)
Weight Approximately 110kg
Maximum bearing weight of the top cover 30kg
Display
Type Color TFT (touch screen)
Size 12.1 inches
Resolution 600 × 800 pixels
Brightness Not adjustable
LED indication
Alarm Indication 8 (yellow, red, and when the senior and mid-level alarms occur simultaneously, only red flashes on priorty)
AC power indicator 1 (green)
Battery indicator 2 (green and orange)
Audio instruction
Speaker Alarm sounds, tone ,volume adjustable,alarm tone meet IEC60601_1_8 standards.
Control
Knobs 1, Support clockwise / counterclockwise rotation and pressing operation
Button 4, Alarm pause, alarm reset, standby, back to the main screen.
Interface
Power supply An AC power connector Three auxiliary output power interface
Equipotential An equipotential ground
USB 1 standard USB interface
Moving means
Roller 4 castors, diameter 125mm
Brake castors Two lockable front casters
Toolbox
Drawer 200 × 392 × 398 (H×W×D)
Respiratory System
Bellows capacity 1500mL
Absorber canister capacity 1500mL
Connection Suction / ACGO ports: standard OD 22mm, ID 15mm, tapered connector; Exhalation ports: standard OD 22mm, ID 15mm, tapered connector. Manual breathing bag port: diameter 22cm
System leaks The system is not greater than 100ml/min leakage in any mode
System compliance The loss due to the system’s internal compliance gas volume (manual mode)as follows:
Adult mode ≤ 4 mL / cmH2O,
pediatric mode ≤ 3 mL / cmH2O
Resistance Inspiratory < 0.6 kPa; Expiratory < 0.6 kPa
Real-time clock
Range 2000 (00:00) ~ 2100 (23:59)
Accuracy ± 1 minute
Display Resolution 1 minute / month(at 21±3℃ under the conditions)
Use the Power Independent power (Button battery)supply
Vaporizer
Technical Specification
Flow range 0.2-15L/min
Connector type Selected compatible, plug in, cage mount
Dosing methods Pour-fil, Easy-fil, Quick-fil (Sevoflurane)
Working environment
Working temperature +15℃ ~ +35℃
Relative humidity ≤93%
Atmospheric pressure range 70kPa ~ 106kPa
Storage temperature -40℃ ~ +65℃
Anesthetic Concentration:
0~5.0%: Isoflurane, Enflurane, Halothane
0 ~ 8.0%: Sevoflurane
Main technical parameters
Basic function

Disply:12” TFT, Touch screen

Tidal Volum:20-1500ml(optional 10-1600ml)

Fresh gas compensation pre-use check,

Leakage testing and compliance compensation

Electronic PEEP

Wave form
Loop P-V,V-F,P-F
Paw-T, Flow-T,V-T
Optional CO2-T ,Pleth ,AG
Trend
24hours

Gas supply Pressure Monitoring



Gauge-Pipeline supply: O2, N2O, Air

Optional :gauge-cylinder: O2, N2O(configured with Yoke option )

Monitoring Parameter



Tidal Volume, MV, Frequency, I:E, Airway Pressure , Compliance, Resistance.(optional :EtCO2,FiCO2,PHASEIN gas module for anesthetic agent)
Application Adult , pediatric and Infant
Vaporizer two position
Gas supply O2, N2O, Air

Alternate O2(safety flow )



Range:0 to 15 L/min

Indicator : flow tube

Indicator accuracy :±10%

Fresh gas flowmeter &mixer (electronic automatic control)
O2 0~15LPM
N2O 0~12LPM
Air 0~15LPM
Flow accuracy ±10% of setting ±0.1/min
O2 concentration range 21% to 100% O2 concentration
Accuracy ±5%
Electronic mitting compensation 0.5s(10%-90% flow step)
Compensation Temperature and atmospheric pressure compensated to standard conditions of 20C and 1013kpa
Hypoxic guard Electronic
FiO2% O2sensor
Auxiliary O2 supply O2 Flow meter (O2: 0~15LPM) (Optional)
ACGO Yes(optional)
Battery NI-MH battery build in.>90mins
Yoke Optional:O2, N2O
Cycle Absorber Intergrade, bypass Design, heating system.
Setting Parameter
Description Parameter
Tidal Volume 20~1500 mL(optional 10-1600ml)
Frequency 1~100 bpm
Tinsp 0.1~10.0s
I:E 4:1~1:10
Pause 0~60%
PEEP OFF, 3~30 cmH2O
Psupp 0~70 cmH2O
Pressure Control 5~70 cmH2O
Flow Trigger 0.5~20 L/min
Pressure Trigger 0~20 cmH2O
Ramp 0~2s
Expiratory Trigger 5~80%
Monitoring Parameter
Description Parameter
Tidal Volume Inspiration 0~2500 mL
Tidal Volume Expiration 0~2500 mL
MV 0~60 L/min
MVspont 0~60 L/min
Frequency 0~100 bpm
Ratespont 0~100 bpm
I:E 9:1~1:99
Ppeak 0~100 cmH2O
Pmean 0~100 cmH2O
PEEP 0~100 cmH2O
Pplat 0~100 cmH2O
Pmin -20~100 cmH2O
O2% 15~100%
Compliance 0~300 mL/cmH2O
Resistance 0~600 cmH2O/(L/s)
EtCO2 (Optional) 0~13.3 %
FiCO2 (Optional) 0~13.3 %
Anesthetic agent Massimo gas module for anesthetic agent
Flow trigger 0.5~20L/min
Pressure trigger 0~20cmH2O
Ramp 0~2s
Expiratory 5~80%
Alarm Parameter
Description Parameter
Tidal Volume
Upper limit 30~2000 mL
Lower limit OFF, 20~1500 mL
MV
Upper limit 1~99 L
Lower limit 0~98 L
O2% (Optional)
Upper limit 22~100%,OFF
Lower limit 20~99%
Airway Pressure
Upper limit 10~99 cmH2O
Lower limit 1~98 cmH2O
Frequency
Upper limit 1~100 bpm
Lower limit 0~99 bpm
EtCO2 (Optional)
Upper limit 0.1~13.3 % ;
Lower limit 0~13.2 %;
Environment specification
Description Parameter
Work environment
Temperature 10-40℃
humidity 5~95%,non-condensing
Environmental Pressure 50~106kpa
Storage environment
Temperature -20-55℃
humidity 10~95%,non-condensing
Environmental Pressure 50~106kpa
Power Specifications
Description Parameter
External AC power
Input Voltage 100 - 240V
Input Frequency 50/60Hz
Input Power <150 VA
Internal Battery
Number of batteries A battery pack
Battery Type Nimh batteries
Rated battery voltage 12VDC
Battery capacity 4200mAh
Shutdown Delay Less than 10min
Charging time 4h
