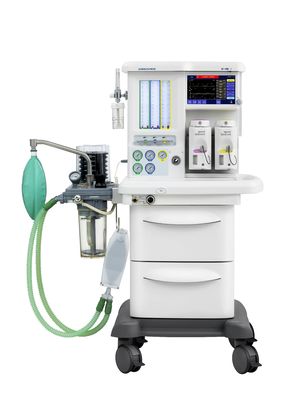

10.4'' touch screen Bpl Anaesthesia Machine no physical buttons

10.4'' touch screen Bpl Anaesthesia Machine no physical buttons
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Anesthesia Equipments & Accessories,Anaesthesia Machine,Breathing Apparatus
Instrument Classification: Class III
Product Name: Hospital Vaporizer Anesthesia Machine,Adult Anaesthesia Machine,Anaesthetic Machine With Ventilator Machine Price,Portable Anaesthesia Machine
Application: Operating Room,Applied For Child And Adult,Adult And Pediatric( 3kg Over)
Warranty: 1 Year
Display: 12.1" TFT Touch Screen
High Light:

10.4'' Bpl Anaesthesia Machine

,

No Physical Buttons Bpl Anaesthesia Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: siriusmed
Certification: CE,ISO,FSC,
Model Number: x45
Payment & Shipping Terms
Payment Terms: T/T
Product Description

Anesthetic Workstation X45-All integrated in the touch screen, no physical buttons.



System Specifications

System Specifications
Technical parameters Specification
Machine
Size 1410 × 950 × 650 (H × W × D)
Weight 110kg
Top cover 30kg bearing weight
Size 580 x 400mm
Display
Type Color TFT (touch screen)
Size 10.4’ inches
Resolution 600 × 800 pixels
Work surface light LED
LED indication
Alarm Indication
AC power
Battery indicator
Audio instruction
Speaker Alarm sounds
Control
Button Presskry
Interface

RS232, VGA, USB

Three auxiliary output power interface


Moving means
Castor 4 antisatic castors, diameter Φ125mm (2 brake infront)
Toolbox
Drawer 200 × 392 × 398 (H×W×D)x2
Respiratory System
Air bellow 1500mL
Absorption chamber 1500mL
Connection

Suction / ACGO ports: standard OD 22mm, ID 15mm, tapered connector;

Exhalation ports: standard OD 22mm, ID 15mm, tapered connector.

Manual breathing bag port: diameterΦ22cm

System leaks < 40ml/min
System compliance Type ≤ 4 mL / cmH2O
Resistance

Inspiratory < 0.6 kPa;

Expiratory < 0.6 kPa

Vaporizer
Technical Specification
Flowrate range 0.2-15L/min
Connector type Selectatec compatible, plug in, cagemount
Filling type Pour-fil, Easy-fil, Quik-fil (Sevoflurane)
Working environment
Working temperature +15℃ ~ +35℃
Relative humidity 5%~95%(non-condensing)
Atmospheric pressure 70kPa ~ 106kPa
Storage temperature -20℃ ~ +55℃
Concentration:

0 ~ 5.0%: Isoflurane, Halothane

0 ~ 8.0%: Sevoflurane

Main technical parameters
Description Parameter
Ventilation Model

VCV, SIMV-V, PCV, Manual, standby.

Optional: SIMV-P,PRVC,SIMV-PRVC-PSV(Backup)

Wave form Paw-T,Flow-T,V-T,CO2-T
Loop P-V,V-F(Optional)

Pressure Monitoring



Centrol: O2, N2O, Air

Cylinder: O2, N2O

Monitoring Parameter



Tidal Volume, MV, Frequency, I:E, Airway Pressue, Pmin

, Compliance, Resistance

Application Adult and Pediatric
Vaporizer Selected bar for two position
Gas supply O2, N2O, Air

6 tubes Flowmeter



O2: 0~10LPM;

N2O: 0~12LPM;

Air: 0~15LPM;

O2% O2 sensor
Auxiliary O2 Auxiliary O2 Flow meter(O2: 0~15LPM) (Optional)
ACGO Yes
O2 Flush 25-75L/Min
Battery

NI-MH battery build in.

>90mins

Yoke 2 ( O2, N2O) (Optional)
Gas Cylinder O2, N2O (Optional)
Cycle Absorber Intergrade, bypass Design, heating system.
Setting Parameter
Description Parameter
Tidal Volume 50~1500 mL (Optional 10~1600ml)
Frequency 1~100 bpm
Tinsp 0.1~10.0s
I:E 4:1~1:10
Pause 0~60%
PEEP OFF, 3~30 cmH2O
Psupp 0~70 cmH2O
Pressure Control 5~70 cmH2O
Flow Trigger 0.5~20 L/min
Pressure Trigger 0~20 cmH2O
Ramp 0~2s
Monitoring Parameter
Parameter Description
Tidal Volume Inspiration 0~2500 mL
Tidal Volume Expiration 0~2500 mL
MV 0~60 L/min
MVspont 0~60 L/min
Frequency 0~100 bpm
Rates Pont 0~100 bpm
I:E 9:1~1:99
Ppeak 0~100 cmH2O
Pmean 0~100 cmH2O
PEEP 0~100 cmH2O
Pplat 0~100 cmH2O
Pmin -20~100 cmH2O
O2% 15~100%
Compliance 0~300 mL/cmH2O
Resistance 0~600 cmH2O/(L/s)
EtCO2 (Optional) 0~13.3 %
FiCO2 (Optional) 0~13.3 %
Alarm Parameter
Description Parameter
Tidal Volume
Upper limit 10~2000 mL
Lower limit OFF, 10~1990 mL
MV
Upper limit 1~99 L
Lower limit 0~98 L
O2% (Optional)
Upper limit 19~100%,OFF
Lower limit 18~99%
Airway Pressure
Upper limit 10~99 cmH2O
Lower limit 0~98 cmH2O
Frequency
Upper limit 1~100 bpm
Lower limit 0~99 bpm
EtCO2 (Optional)
Upper limit 0.1~13.3 % ;
Lower limit 0~13.2 %;
FiCO2 (Optional)
Upper limit 0.1~13.3 % ;
Continue high Pressure Airway pressure beyond(PEEP+15)cm H2O, continuedly(15+1)s
Apena 10~60 s, Increase: 5s
O2 supply down < 0.28 MPa
Mains failure Automatic switch battery
Battery low < 10 min
Battery discharged < 5 min
Mute ≤120 s
Pressure low < -10cmH2O
Power Specifications
Description Parameter
External AC power
Input Voltage 100 - 240V
Input Frequency 50/60Hz
Input Power <150 VA
Internal Battery
Number of batteries A battery pack
Battery Type Nimh batteries
Rated battery voltage 12VDC
Battery capacity 4200mAh
Shutdown Delay Less than 10min (using a new fully charged battery, low battery alert since the first post)
Shortest supply time 90min
Charging time 4h
Work environment
Temperature 10 ~ 40 ºC
Humidity 5 ~ 95%, non-condensing
Environmental pressures 70 ~ 106 kPa
Storage environment
Temperature -20 ~ 55 ºC
Humidity 10 ~ 95%, non-condensing
Environmental pressures 50 ~ 106 kPa


Suitable for pediatric and adults

Tidal volume setting Optional 20~1500ml(optional 10-1600ml)

Friendly user interface

Sufficient modes of Ventilation: VCV, PCV, SIMV-V, Manual

Gas supply: O2 , N2O, Air

Optional: SIMV-P , CPAP/PSV , PRVC, SIMV-PRVC, BACKUP , O2 , ETCO2 , AGSS , Suction,AA

6 Tubes flowmeter more accurate and stable, auxiliary flowmeter Gas system, Hypoxic guard system, ORC, O2, Flush

Vaporizer: Selectatec bar support 2 vaporizers

ACGO, 2 Yokes (O2 & N2O)

10.4" TFT touch screen High resolution, with rotary knob and hard key input. Resolution 680 x 480.
