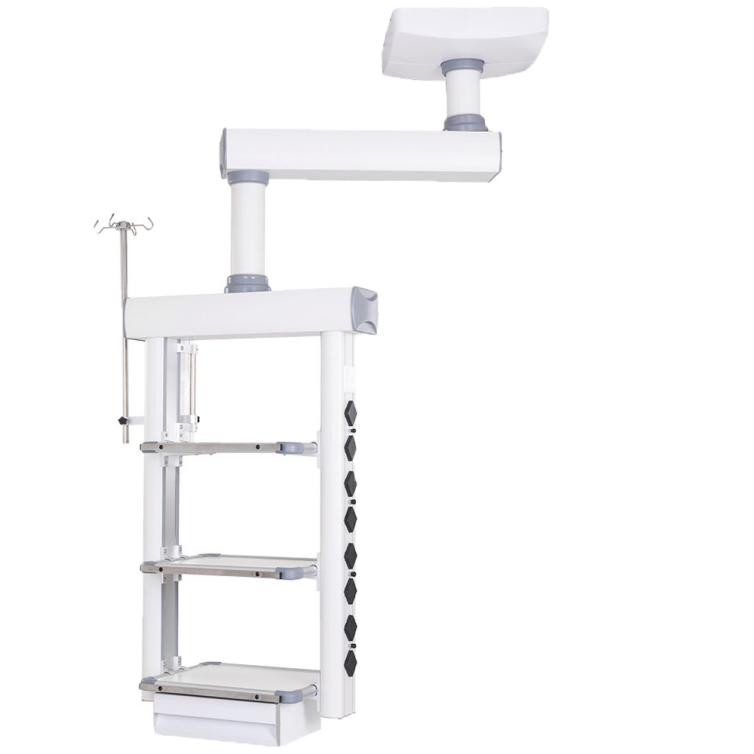

China Quality Medical and Critical Care Pendants, Customised operating theatre pendants
1. Working power supply: AC220V, 50Hz;
2. Range of motion (radius) of double transverse arms: 700-1100 mm and 400-600 mm (configurable according to the requirements of the hospital)
3. Horizontal rotation angle: 0 ~ 340 °, the transverse arm and terminal box can be rotated horizontally separately or simultaneously;
4. Net load weight ≤ 80 kg;
5. Instrument platform: 3 layers (adjustable height) 550 mm-400 mm, one drawer, round-angle anti-collision design;
6. Gas interface configuration (which can be configured according to the requirements of the hospital): a. The interface has different colors and shapes and has the function of preventing connection errors;
B. More than 20,000 times of insertion and pulling out;
C. Adopt secondary sealing, with three states (on, off and out), and can carry gas maintenance;
7. Power sockets: 8, 220 V and 10 A; one for each telephone network interface
8. Equipotential grounding terminal: one;
10. One stainless steel adjustable infusion pole;
11. The main material shall be high-strength aluminum alloy profiles;
12. Electrostatic spraying is used for surface treatment;
13. Suction top installation, stable and firm.
