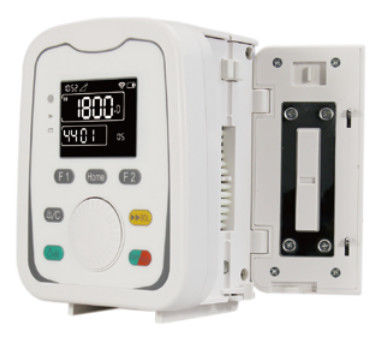

Lcd Screen Electronic Infusion Pump
1 unit
MOQ
260-290USD per unit
Price
Lcd Screen Electronic Infusion Pump
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Siriusmed
Certification: CE, ISO 13485
Model Number: MI22
High Light:

lcd screen electronic infusion pump

,

siriusmed electronic infusion pump

Payment & Shipping Terms
Packaging Details: Carton Box
Delivery Time: 5-8 days Qty within 500 unit
Payment Terms: T/T
Specifications
Name: EASY-TO-USE PRECISION INFUSION PUMPS, MI22, CE/ISO APPROVED HOSPITAL EQUIPMENT
Infusion Volume: 0.1-9999.9ml, Step By 0.1ml
Flow Rate: 0.1-1800ml/h, Step By 0.1ml/h
Accuracy: ±5%
Purge/Bolus Rate: 1-1800ml/h Adjustable, ±20%
Alarm: Low Battery; Battery Exhausted, Air In Line, Door Open, A.C. And D.C. Off, Pause Overtime
Power: A.C. Input Power 100V-240V 50/60Hz; D.C. Output Power 15V/2A
Battery Type: Lithium; Nominal Voltage: 10.8V; 6 Hours Working Period
Weight: 1.5Kg
Dimension: 132*95*165mm (W*D*H)
Classification: Class II, Type CF, IPX2
Warrenty: 2 Years
Product Description

EASY-TO-USE PRECISION INFUSION PUMPS, MI22, CE/ISO APPROVED HOSPITAL EQUIPMENT



1. Compact and portable, easy to learn and use

2. Ultrasonic bubble detection, unique algorithm that eliminates false alarm

3. LCD screen, high-contrast, simple to read

4. Patented quick-hook system, easy and fast installation

5. Intelligent block-removal system, automatically release the pipeline pressure after blockage.

6. High-capacity lithium battery, facilitates patient transfer

7. Multiple alarm functions, different levels of sound and visual alarm

8. Dual CPU ensures safety and reliability



SPECIFICATION

Volume infused 0.1-9999.9ml, Step by 0.1ml
Flow rate 0.1-1800ml/h, Step by 0.1ml/h
Accuracy ±5%
Purge/Bolus rate 1-1800ml/h, Step by 1ml/h
KVO rates Flow rate≥10ml/h:KVO rate 3ml/h
Flow rate<10ml/h KVO rate 1ml/h
Flow rate<1ml/h KVO rate=flow rate
Alarm Battery error, Low battery, Air in line, Occlusion,
Door open, Pause overtime, VTBI completion,
Drop error, Malfunction, AC/DC off
Occlusion pressure

Two-level: High, Low

H: 100Kpa±30Kpa; L: 50Kpa±20Kpa

Power Adapter

A.C. input power 100v-240v 50/60Hz

D.C. output power 15V/2A input power 15V

Lithium battery: Nominal Voltage 10.8V, 6 hours working duration
Classification Class II, Type CF, IPX 2
Weight 1.5KG
Dimension 132*95*165mm(W*D*H)
