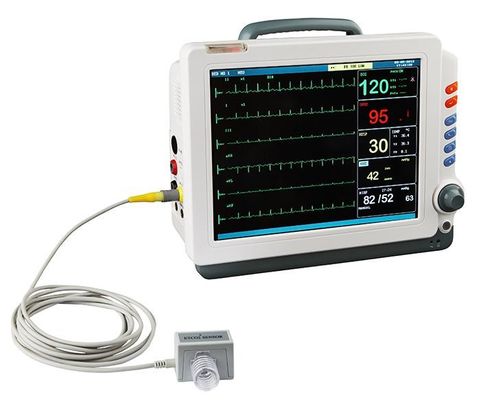

Siriusmed EEG Monitoring Device , 12.1 TFT Anesthesia Monitoring Equipment

1 Unit
Siriusmed EEG Monitoring Device , 12.1 TFT Anesthesia Monitoring Equipment
Features Gallery Product Description Request A Quote
Name: Handheld First-aid Medical Multi-parameter Depth Of Anesthesia Monitor OSEN 8000D
Keyword: The Latest Generation Of Anesthesia Depth Multi-Parameter Monitor
Display: 12.1 TFT Color LCD Large Screen
Scope Of Application: Adults, Pediatric And Newborns
Material: Plastic, Steel
Weight: <2Kg
Charge Time: 4 Hours
Power Supply: 90-240v 50\60Hz
Security Level: Interior Power Supply\I Class CF Type
Storage: Large Data Storage Capacity, At Least 2000 Hours, Export Data And Trend Graphs, Print Reports In PDF Format
High Light:

Siriusmed EEG Monitoring Device


12.1 TFT EEG Monitoring Device


12.1 TFT Anesthesia Monitoring Equipment

Basic Infomation
Place of Origin: Beijing China
Brand Name: Siriusmed
Certification: ISO13485 CE
Model Number: OSEN 8000D
Payment & Shipping Terms
Packaging Details: Customized packaging
Delivery Time: 5-8 days Qty within 50 unit
Payment Terms: T/T
Supply Ability: 300 Unit/Units per Month
Product Description

Handheld first-aid medical Multi-parameter Depth of Anesthesia Monitor OSEN 8000D



1. The latest generation of Anesthesia Depth Multi-Parameter Monitor. It has the depth of Anesthesia index, analgesia index, myoelectric index, and six vital signs parameters(ECG, blood pressure, respiration, body temperature, SpO2, pulse rate), which is a ture multi-parameter monitor for the anesthesia depth.

2. Display the depth of anesthesia index, analgesia index, burst suppression ratio, EMG signal, EEG on the same screen;

3. Display the depth of anesthesia index and analgesia index 2-6seconds after connecting the sensor, real-time monitoring;

4. With high-resistance to high frequency surgical unit, fast signal reset;

5. Large data storage capacity, at least 2000 hours, export data and trend graphs, print reports in PDF format

6. The sampling rate of 2000 times per second ensures real-time performance;

7. Suitable for monitoring of adults, pediatric and newborns;


Depth of Anesthesia Index

Depth of Anesthesia Index Clinical State
90-100 Awake
80-90 Drowsiness
60-80 Mild anesthesia
40-60 Anesthesia depth range suitable for surgery
10-40 Deep anesthesia, with burst suppression ratio (BS%) in most cases
0-10 Close to deep coma, when the depth of anesthesia index (3,BS%) is 75, EEG is basically equipotential


Analgesia Index

Analgesia Index Clinical State
80-99 The patient is prone to projections of harmful stimuli, with pain or allergies
65-80 Mild anesthesia
35-65 The probability of response to harmful stimuli is low, and this range is sufficient for surgical operations
20-35 Very low probability of reaction to harmful stimuli
0-20 Overdose of analgesics
