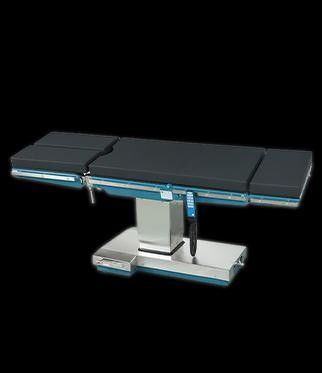

HE-608-A Multifunctional Electro-hydraulic surgical operating table Siriusmed Medical
Features
1. Using microcomputer control, advanced electro-hydraulic transmission technology, replacing the traditional electric push rod technology, making the body position more accurate, and the running speed more uniform and stable.
2. The hydraulic system adopts high-pressure hydraulic components, the overall bearing capacity reaches 350kg, the performance is more excellent, and it is durable.
3. The head and leg plates are adjusted pneumatically, which is convenient for adjustment and more precise positioning.
4. 80mm double-layer memory foam mattress, which evenly distributes the patient's weight on the entire cushion, reduces the risk of bedsores during surgery, and the surface of the mattress is seamless, antibacterial and easy to clean.
5. The table top frame is made of high-quality steel plate by bending, the base and the lifting column cover are made of 304 stainless steel plate, which is resistant to impact, damage and convenient for cleaning and disinfection.
6. The detachable head plate provides a more flexible operating room；
7. Device with front brake system to make doctors lock the operating table easily.
Parameter
| Specification | ||
| Height Adjustment(mm) | 700-1000 | no include mattress height |
| Tabletop length(mm) | 2000 | / |
| tabletop wide (mm) | 520 | include side rail 580 |
| Longitudinal Slide(°) | 300 | electric |
| Manual Adjutable of Built-in Kidney Bridge | 0-120(mm) | manual |
| Trendelenburg/Reverse Trendelenburg (°) | 30/30 | electric |
| Left/Right Tilt(°) | 20/20 | electric |
| Back Plate(Up/Down)(°) | up ≥75, down ≥40 | electric |
| Leg Plate(Up/Down)(°) | up 50, down ≥90 | pneumatic ,Removable |
| Outrach (°) | ≥90 | |
| Head plate(°) | up 50,down 90 | pneumatic, detachable |
| Safe load (Kg) | 350 |
