Widely Usage Range:Suitable For Infants And Adults
Tidal Volume Setting:20~2500mL
Sufficient Modes Of Ventilation::VCV, PCV, SIMV-VC, SIMV-PC, SPONT/CPAP+PSV, DuoPhasic
Friendly User Interface::TFT Color Screen With Touch Screen
High Light:
r30 siriusmed ventilator
,
tft display siriusmed ventilator
,
air compressor siriusmed r30 ventilator
Basic Infomation
Place of Origin:China
Brand Name:Siriusmed
Certification:ISO, CE
Model Number:R30
Payment & Shipping Terms
Gallery

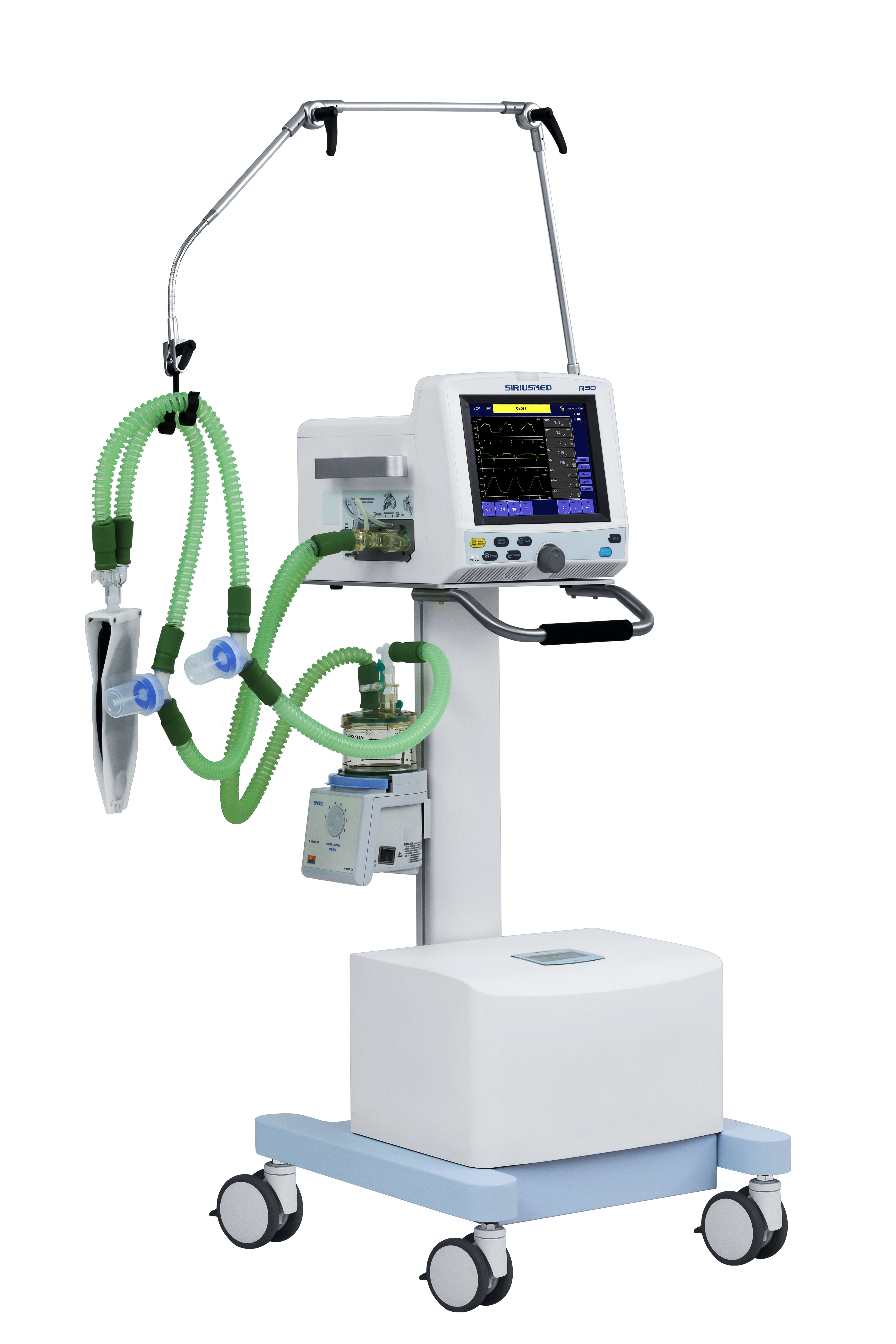

10.4'' Tft Display R30 Siriusmed Ventilator With Air Compressor
Product Description
Good Price Ventilator R30P -Pneumatically Driven And Electronically Controlled Icu Ventilator
Pneumatically driven and electronically controlled ICU ventilator
Usage range: Suitable for Adults,pediatrics and neonatal
Active Exhalation Valve
Achieves breathing during both inspiratory and expiratory.
Actively controls the target pressure, prevent airway pressure high
Promotes patient ventilator synchrony.
Modular exhalation valve & flow sensor is easily removable and serializable.
Technical Specification
Pneumatic Ventilator
R30
l Display
l Respiratory mode
l Graphical display
l Battery
l Data communication port
l 10.4”, TFT display, with touch screen
l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV )
l P-T, F-T, V-T(Optional: CO2-time, pulserate-time)
l loop: P-V, F-V
l NI-MH battery, >120mins
l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI)
l Power supply: 100-240V, 50/60Hz
l Temperature: 10-40℃ (Operation), -20-60℃ (Storage)
l Relative humidity: 5-95%, non-condensing (Operation)
≤95%, non-condensing (Storage)
l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa
l Dimensions (H×W×D):
Ventilator: 455mm x 400mm x 300mm
Trolley: 565mm X 535mmX 910mm
l Weight:
Ventilator: 12.5 kg
Trolley: 20 kg
Pneumatic Ventilator
R30
l Display
l Respiratory mode
l Graphical display
l Battery
l Data communication port
l 10.4”, TFT display, with touch screen
l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV )
l P-T, F-T, V-T(Optional: CO2-time, pulserate-time)
l loop: P-V, F-V
l NI-MH battery, >120mins
l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI)
l Power supply: 100-240V, 50/60Hz
l Temperature: 10-40℃ (Operation), -20-60℃ (Storage)
l Relative humidity: 5-95%, non-condensing (Operation)
≤95%, non-condensing (Storage)
l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa
l Dimensions (H×W×D):
Ventilator: 455mm x 400mm x 300mm
Trolley: 565mm X 535mmX 910mm
l Weight:
Ventilator: 12.5 kg
Trolley: 20 kg
20~3000 mL
1~99 L
22~100%, OFF
1~99 cmH2O
1~120 bpm
50~99%, OFF
0.1~13.3 kPa
31~250 bpm
OFF,20~2999 mL
0~98 L
20~100%
0~98 cmH2O
0~99 bpm
49~99%
0~13.2 kPa
30~249 bpm
Circuit occlusion
Apnea alarm
O2 SUPPLY DOWN alarm
Mains failure alarm
Battery power low alarm
Battery discharged alarm
Alarm silence
(PEEP+15) cmH2O, 15s
15~60s
< 280 kPa
Automatically switch
< 10 min
< 5 min
≤120 s
Auxiliary O2
Auxiliary O2 Flow meter(O2: 0～15LPM) (Optional)
ACGO
Yes
O2 Flush
25-75L/Min
Battery
NI-MH battery build in.
>90mins
Yoke
2 (O2, N2O) (Optional)
Gas Cylinder
O2, N2O (Optional)
Cycle Absorber
Intergrade, bypass Design, heating system.
Setting
Parameter
Monitoring
Parameter
Tidal volume (optional 20ml)
Respiratory frequency
Inspiratory time
Breath-hold time
Pressure triggering
Flowrate triggering
PEEP
Pressure support
Pressure control
High pressure level
Low pressure level
Oxygen concentration
100% O2
Thigh (optional)
freeze
